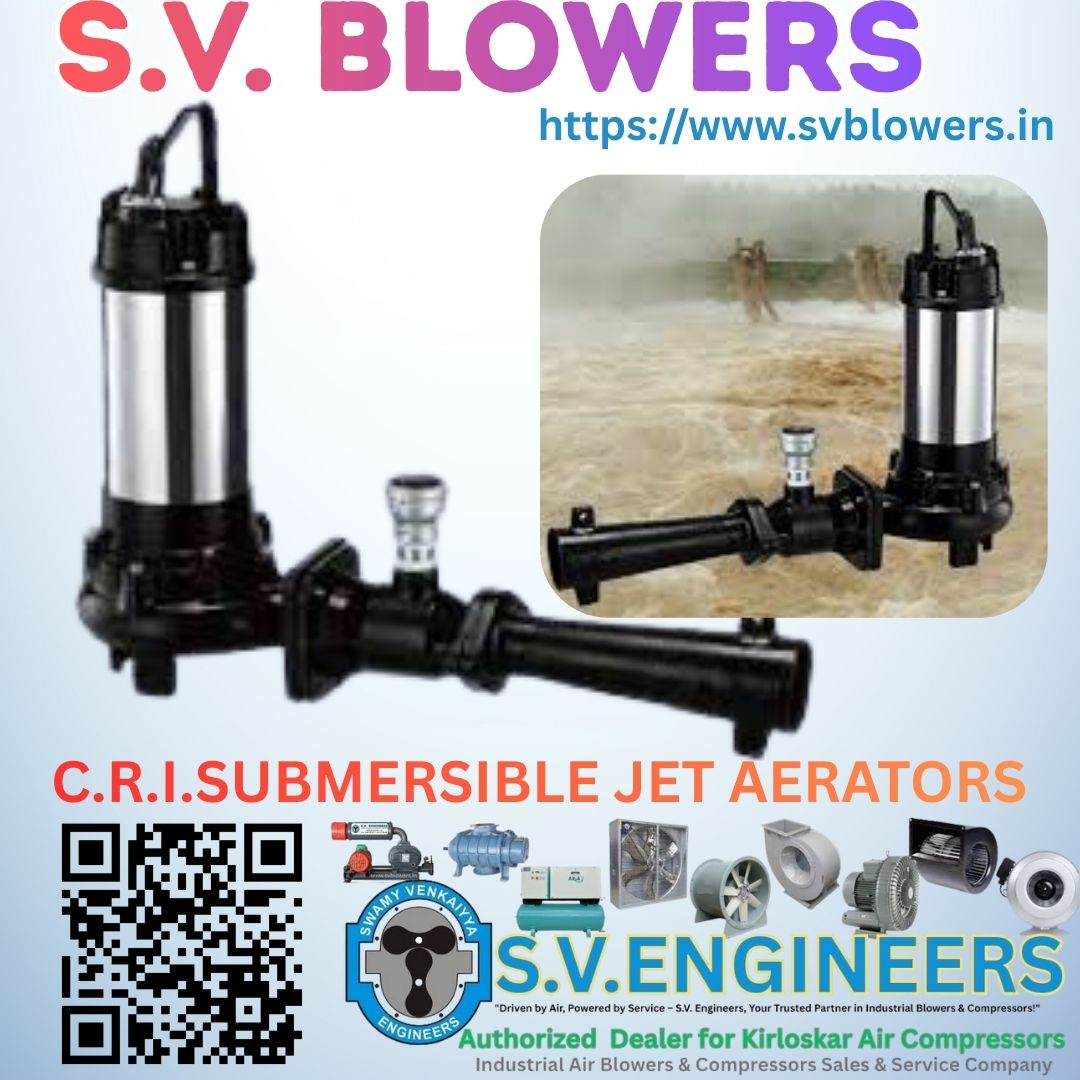

C.R.I. Submersible Jet Aerators are engineered to deliver high-performance aeration and powerful mixing in sewage and industrial waste water treatment processes. Designed for submerged operation, these jet aerators ensure consistent oxygen supply, improved biological activity, and stable treatment efficiency across varying load conditions.
Supplied and serviced by S.V. Engineers, these systems are trusted by industries and municipalities for long-term, trouble-free operation.
The system uses a submersible pump coupled with a jet nozzle and air intake arrangement. Water is pumped at high velocity through the nozzle, creating a vacuum that draws air into the jet stream. This produces fine air bubbles and strong turbulence, resulting in effective oxygen diffusion and homogeneous mixing inside the tank.
Excellent oxygen dispersion with minimal energy loss
Strong circulation prevents sludge settlement
No floating or surface-mounted components
Suitable for varying tank depths and layouts
Works efficiently under fluctuating organic loads
Minimal civil modifications required
Long service life in continuous operation
Heavy-duty cast iron / stainless steel pump body
Precision-engineered jet nozzle assembly
High-efficiency submersible motor
Robust mechanical seal arrangement
Designed for non-clog sewage applications
Thermal overload protection
Power Rating: 1 HP to 20 HP
Operation: Fully submerged
Medium: Sewage, activated sludge, industrial effluent
Duty Type: Continuous aeration
Mounting: Guide rail or fixed base installation
Domestic & commercial STP plants
Industrial ETP systems
Equalization & aeration tanks
Municipal sewage treatment
Textile, chemical & pharma industries
Food processing & dairy plants
Compared to surface aerators or diffused air systems, jet aerators offer:
Better mixing with compact installation
No aerosol or odor dispersion
Reduced maintenance compared to blower-based systems
Stable oxygen transfer even at low water levels
We provide end-to-end solutions including:
Supply of genuine C.R.I. jet aerators
System sizing & application guidance
Installation supervision
Repair & overhauling services
Spares such as seals, motors & nozzles
Preventive maintenance contracts
