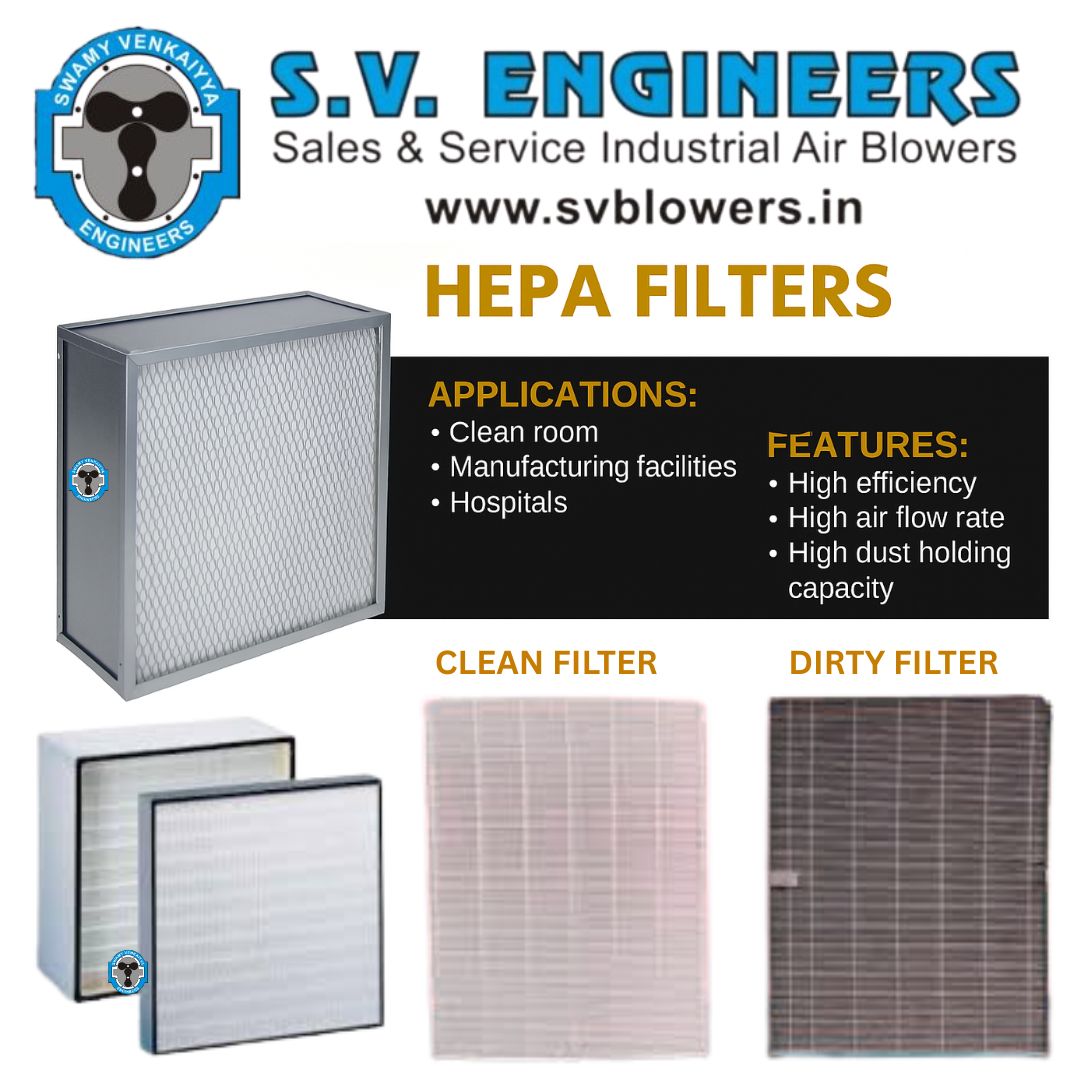

At S.V. Engineers, we offer premium-grade HEPA (High-Efficiency Particulate Air) Filters that are engineered to provide unmatched air purification for critical environments. These filters are capable of removing 99.97% of airborne particles down to 0.3 microns, ensuring safe and clean air in sensitive applications such as cleanrooms, hospitals, pharmaceutical facilities, and more.
| Specification | Details |
|---|---|
| Filter Media | Micro-glass fiber pleated media |
| Frame Material | Aluminium / Galvanized Steel / SS |
| Separators | Aluminium foil or hot-melt spacers |
| Efficiency | H13 / H14 (as per EN 1822 standard) |
| Sealant | Polyurethane or Epoxy-based |
| Gasket | Neoprene / PU foam gasket |
| Initial Pressure Drop | ≤ 250 Pa at rated flow |
| Final Pressure Drop | ≤ 600 Pa |
| Temperature Resistance | Up to 120°C |
| Customization | Sizes & models available as per request |
✅ 99.97% Filtration Efficiency at 0.3 microns
✅ Low initial pressure drop, high airflow
✅ Rugged and corrosion-resistant frame
✅ Long service life with high dust-holding capacity
✅ Factory tested as per international standards (EN 1822)
✅ Leak-proof gasket sealing for critical environments
🌟 Delivers clean & sterile air in sensitive zones
🌟 Minimizes contamination risk in pharmaceutical and healthcare spaces
🌟 Increases the life of downstream equipment
🌟 Enhances energy efficiency in HVAC systems
🌟 Helps maintain ISO Class 5 to Class 8 Cleanroom standards
🏥 Hospitals & Operation Theatres
🧪 Cleanrooms & R&D Labs
💊 Pharmaceutical & Biotech Units
🏭 Food Processing & Packaging Plants
🔧 Electronics & Semiconductor Industries
❄️ HVAC & AHU Air Handling Systems
